7.5 ft. x 165 ft., Extra-strength Poly Deer Fence

7 ft. line post kit with hardware for a 3-cable support system.

USAGE: Use as line posts spaced between 8-ft. and 14 ft. Metal fence and hilly terrain require closer post spacing.

Kit includes:

• 7-Line post: 1-5/8 x 17 gauge post, 7-ft.

• 7-Reverse Sleeve: ss20 galvanized metal reverse ground sleeve used to support black metal deer fence post, 6-ft. A standard post driver is used for installation. *

• 7-Brace Band with eye bolt: 1-3/8 inch brace band is secured to reverse sleeve at ground level to lock post in place. A bottom metal cable is threaded through eye bolt at ground level.

• 7- Collar with eye bolt: Collar is installed on post and middle support cable is run through hole in eye bolt.

• 7- Post cap: Post cap is installed on top of post. Top cable support is run through hole in post cap.

*Driving cap is not needed for installation.

7 ft. end kit system with post, bracing and hardware for a 3-cable support system. This kit includes everything you need for ending your fence at it’s termination or start point.

All of our end post kit systems include a superior bracing system, exclusive by the Benner Deer Fence Co. Each brace pipe is secured to the top of every end post, and the lower end is fastened to the bottom of the next line post. This prevents movement of the braced post and lengthens the life of the fence system. The immovable post also provides a great termination point for cables and fence because the post is secure and will not shift when tension is applied.

USAGE: Post kit system with single brace pipe for the start or end of a fence line.

WORKS WITH: All of our 7-ft. fence kits

KIT INCLUDES:

• 1- End/corner Post Kit: 7-ft. 15 gauge post, 6-ft. reverse sleeve, post cap and hardware for 3-cable support system.

• 1- Brace Pipe: 1-3/8” pipe, one in a 5-ft. section and one in a 6-ft. section for a total length of 11-ft.

• 2-Brace Cups: Secure brace pipe to post kit

• 1- Brace Bands: Fasten brace cup to post kit

7 ft. corner kit system with hardware for a 3-cable support system. This kit includes everything you need for a corner or turn in your fence line.

All of our corner kit systems include a superior bracing system, exclusive by the Benner Deer Fence Co. Each brace pipe is secured to the top of every corner post, and the lower end is fastened to the bottom of the next line post. This prevents movement of the braced post and lengthens the life of the fence system. The immovable post also provides a great termination point for cables and fence because the post is secure and will not shift when tension is applied.

USAGE: Corners and turns up to 90 degrees in a 7-ft. high fence line

WORKS WITH: All of our 7-ft. fence kits

KIT INCLUDES:

• 1- End/corner Post Kit: 7-ft. 15 gaige post, 6-ft. reverse sleeve, post cap and hardware for 3-cable support system.

• 2- Brace Pipe: 1-3/8” pipe, one in a 5-ft. section and one in a 6-ft. section for a total length of 11-ft.

• 4-Brace Cups: Secure brace pipe to post kit

• 2- Brace Bands: Fasten brace cup to post kit

7 ft. Standard System line post kit, 7-pack.

USAGE: Removable deer fence posts for seasonal, temporary and economical fence solutions. Use as line posts spaced between 8-ft. and 14 ft. Metal fence and hilly terrain require closer post spacing. Recommended for soft, manageable soil.

WORKS WITH: Our Standard System posts and kits

Kit includes:

• 7-Line post: 1-5/8-inch x 17 gauge post, 8-ft. (7-ft. above ground)

• 7-Standard Ground Sleeve: 2 1/2 foot, metal sleeve for 1 5/8-inch posts.*

• 7- Vinyl Post cap: 1-5/8-inch vinyl post cap insert

*Driving cap is needed for installation.

7 ft. Standard System end post kit, 2-pack

USAGE: Removable deer fence end post with bracing for seasonal, temporary and economical fence solutions. Use end post with bracing anywhere you start or stop your fence line.

WORKS WITH: Our Standard System posts and kits

Kit includes:

• 2-End posts: 1-5/8-inch x 17 gauge post, 8-ft. (7-ft. above ground)

• 2-Brace pipe: 1-5/8-inch x 17 gauge post, 8-ft.

• 2-Standard Ground Sleeve: 2 1/2 foot, metal sleeve for 1 5/8-inch posts.*

• 2- Vinyl Post cap: 1-5/8-inch vinyl post cap insert

• 2-Brace cups: 1 5/8-inch with hardware

• 2-Brace bands: 1 5/8-inch with hardware

• 2-Carriage bolts: 5/16-inch x 1 1/2-inch, nut and washer

• 4-Self-sealing screws

*Driving cap is needed for installation.

7 ft. Standard System corner post kit, 2-pack

USAGE: Removable deer fence corner post with bracing for seasonal, temporary and economical fence solutions. Use corner post with bracing for turns in fence line as well as extra support along straight stretches of fencing over 200 ft. Recommended for soft, manageable soil.

WORKS WITH: Our Standard System posts and kits

Kit includes:

• 2-Corner post: 1-5/8-inch x 17 gauge post, 8-ft. (7-ft. above ground)

• 4-Brace pipe: 1-5/8-inch x 17 gauge post, 8-ft.

• 2-Standard Ground Sleeve: 2 1/2 foot, metal sleeve for 1 5/8-inch posts.*

• 2- Vinyl Post cap: 1-5/8-inch vinyl post cap insert

• 4-Brace cups: 1 5/8-inch with hardware

• 4-Brace bands: 1 5/8-inch with hardware

• 4-Carriage bolts: 5/16-inch x 1 1/2-inch, nut and washer

• 6-Self-sealing screws

*Driving cap is needed for installation.

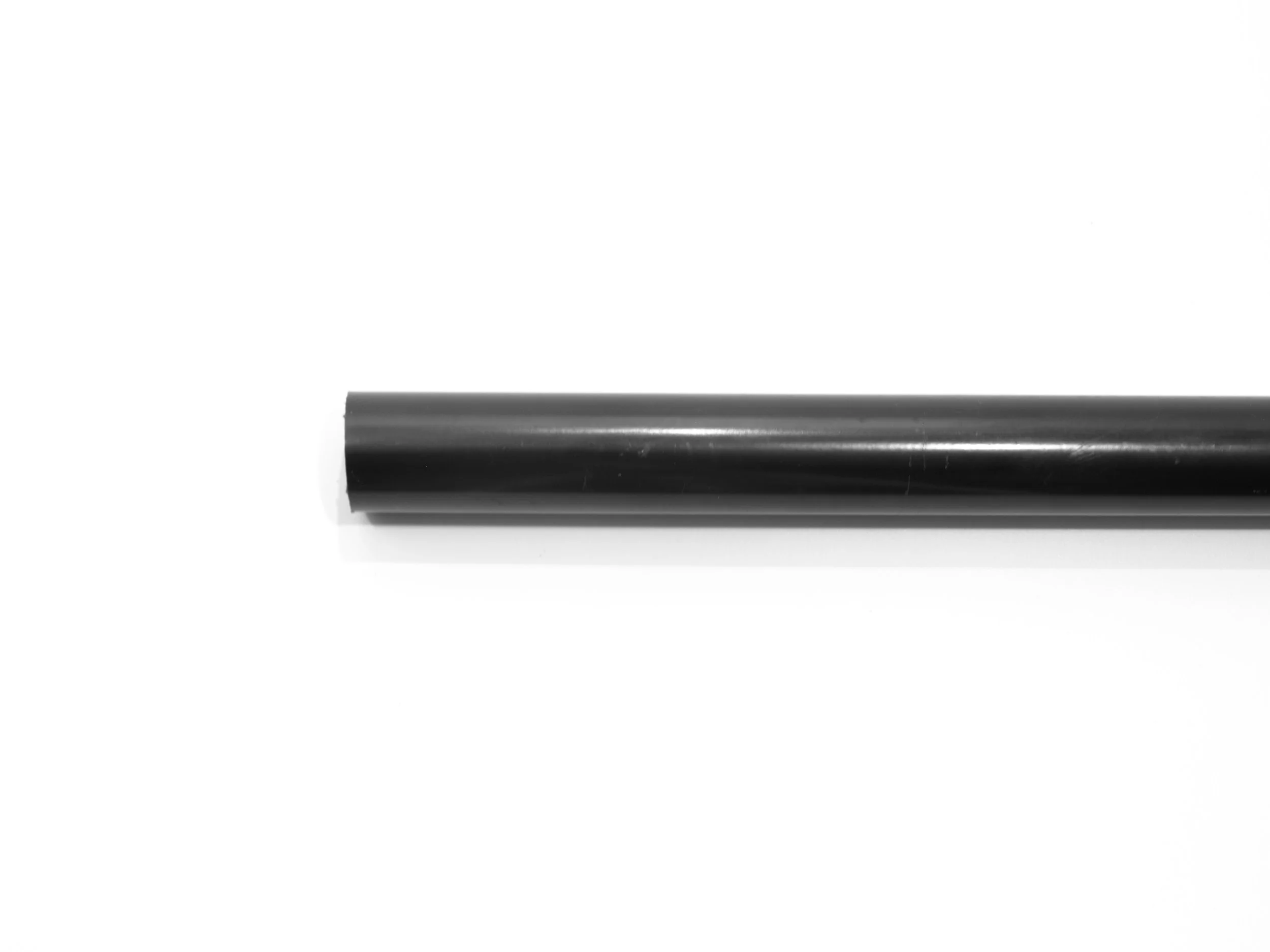

1 3/8 inch brace pipe. Pipe can be paired with a brace pipe with swedge end to create a longer brace pipe. This pipe is used for gate frames and brace pipe.

SPECIFICATIONS Height: 3-ft., 4-ft., 5-ft., 6-ft.*.; Material: 17 gauge galvanized steel; Coating: black powder coating; Diameter: 1-3/8” (exterior)

*Please contact us for custom sizes.
